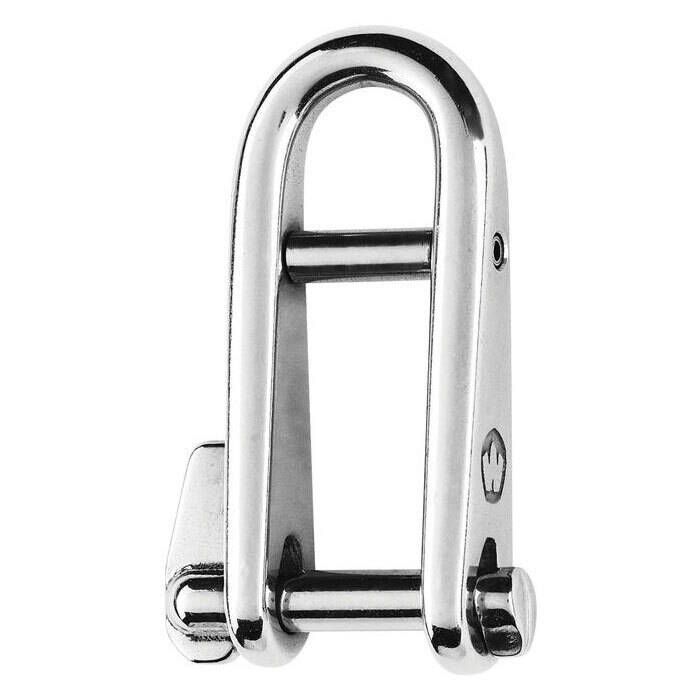

Wichard 81432 Key Pin Shackle w/ Bar
Select a variant to see available stock.
Description
Wichard's Key Shackle with Bar provides an innovative design that achieves outstanding working and breaking loads; so you can have better handling when out on the water.
Features:
- Key pin shackle forged in grade 316 L stainless steel
- Opening and closing is done simply by rotating the pin half a turn
- No risk to lose the pin as it remains attached
- Outstanding working and breaking loads
- Perfect product for halyards or applications requiring to open/close the shackle often
- Materials: 316 stainless steel grade
Specifications:
- 6 mm (15/64") Diameter:
- Working Load: 520 kg (1140 lbs)
- Breaking Load: 1700 kg (3740 lbs)
- Weight: 52 g (0.115 lbs)

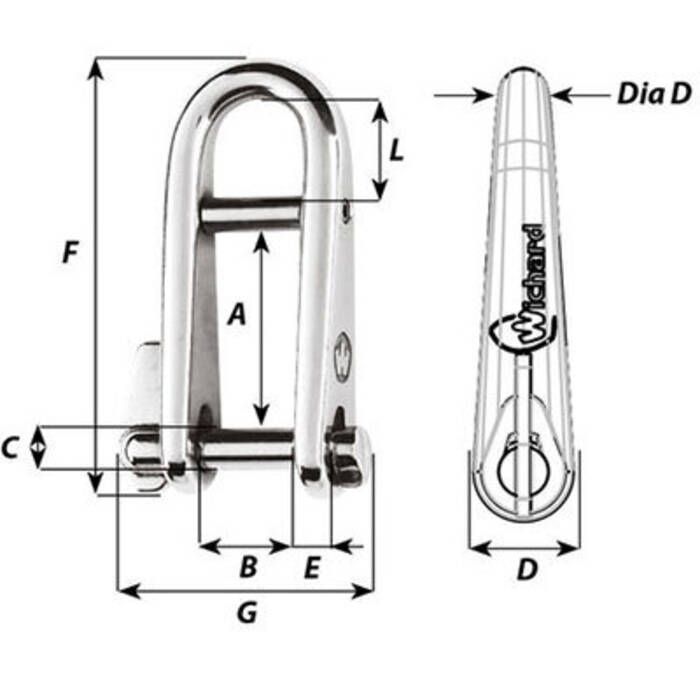

- A: 45 mm (1 49/64")
- B: 16 mm (5/8")
- C: 6 mm (15/64")
- D: 13 mm (33/64")
- D Diameter: 6 mm (15/64")
- E: 4 mm (5/32")
- F: 60 mm (2 23/64")
- G: 37 mm (1 29/64")
- L: 15 mm (19/32")
×
