Barton Marine 35mm Triple Block w/Fixed Eye (8mm Line)
Select a variant to see available stock.

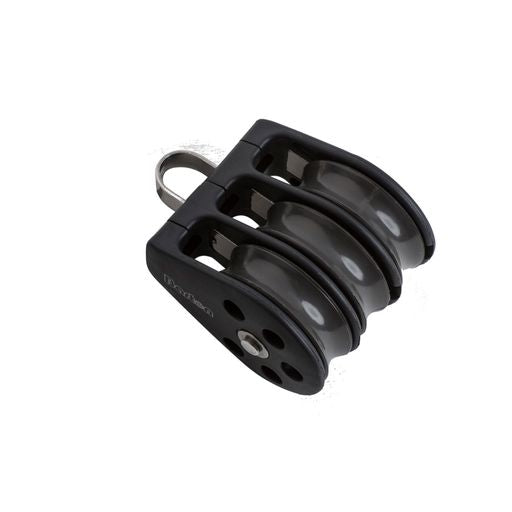

Barton Marine 35mm Triple Block with Fixed Eye (8mm Line)
The 35mm sheave block range provides high performance and load values in a variety of assemblies. The range has an internal Stainless Steel frame and precision components with plain or ball bearing sheave options.
The lightweight design makes this range perfect for a multitude of uses on every yacht.
Technical Specifications:
- Sheave Size - 1.38" (35mm)
- Bearing Type - Plain
- Max Rope Diameter - 3/8" (10mm)
- Safe Working Load - 816lbs. (370kg)
- Breaking Load - 1,631lbs. (740kg)
- Length - 2.99" (76mm)
Barton Marine Part # N02310
*Sold as an Individual
×
