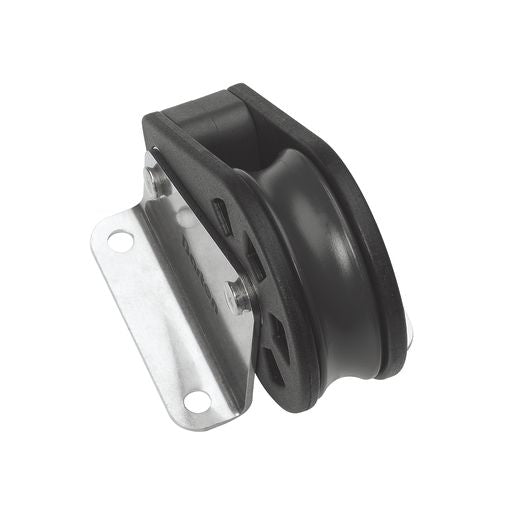

Barton Marine Size 2 - Single Upright Block
Barton Marine Size 2 - Single Upright Block
The 1.38" (35mm) sheave Size 2 block range provides high performance and load values in a variety of assemblies. The range has an internal Stainless Steel frame and precision components with plain or ball bearing sheave options.
The lightweight design makes this range perfect for a multitude of uses on every yacht.
Technical Specifications:
- Sheave Size - 1.38" (35mm)
- Bearing Type - Plain
- Max Rope Diameter - 5/16" (8mm)
- Safe Working Load - 816lbs. (370kg)
- Breaking Load - 1,631lbs. (740kg)
- Length - 2.01" (51mm)
Barton Part Number N02150
*Sold as an Individual
×
