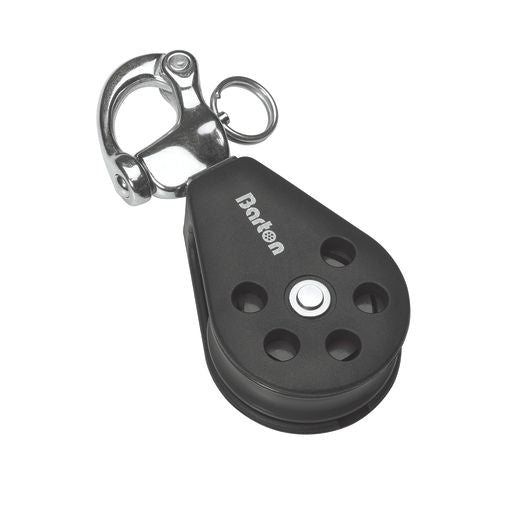

Barton Marine 35mm Single Block w/Snap Shackle (8mm Line)

Barton Marine 35mm Single Block with Snap Shackle (8mm Line)

The 35mm sheave block range provides high performance and load values in a variety of assemblies.  The range has an internal Stainless Steel frame and precision components with plain or ball bearing sheave options.

The lightweight design makes this range perfect for a multitude of uses on every yacht.

Technical Specifications:

• Sheave Size - 1.38" (35mm)
• Bearing Type - Plain
• Max Rope Diameter - 5/16" (8mm)
• Safe Working Load - 815 lb. (370 kg)
• Breaking Load - 1,631 lb. (740 kg)
• Length -3.94" (100mm)

Barton Marine Part # N02140

*Sold as an Individual
