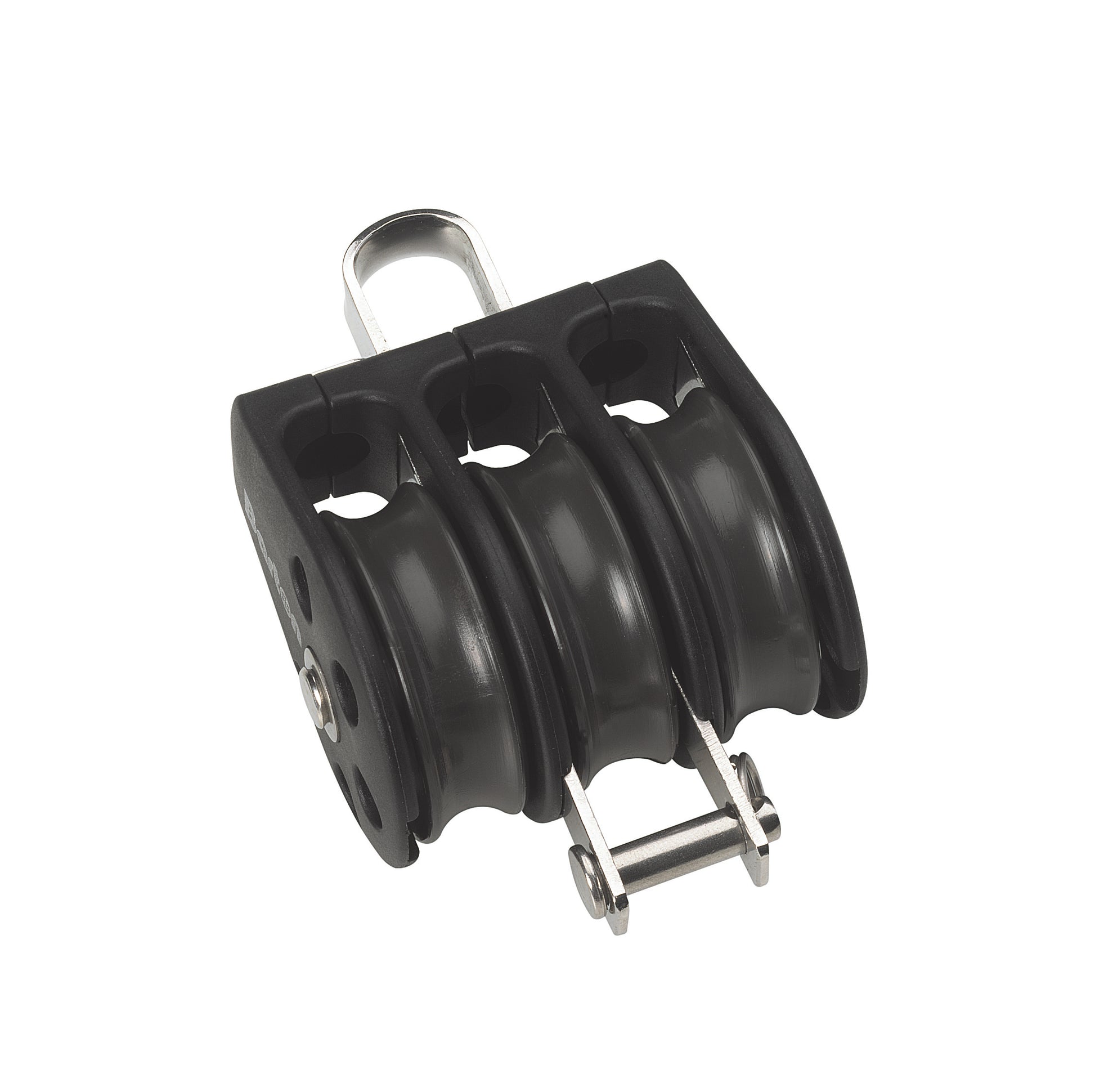

Barton Marine 45mm Triple Block w/Fixed Eye & Becket (10mm Line)
Barton Marine 45mm Triple Block with Fixed Eye and Becket (10mm Line)
The 45mm sheave plain bearing block range provides high performance and load values in a variety of assemblies. The range has an internal Stainless Steel frame and precision components with plain or ball bearing sheave options.
The lightweight design makes this range perfect for a multitude of uses on every yacht.
Technical Specifications:
- Sheave Size - 1.77" (45mm)
- Sheave - Plain
- Maximum Rope Diameter - 3/8" (10mm)
- Safe Working Load - 881 lb. (400 kg)
- Breaking Load - 1,763 lb. (800 kg)
- Length - 3.58" (91mm)
Barton Marine Part # N03311
*Sold as an Individual
×
