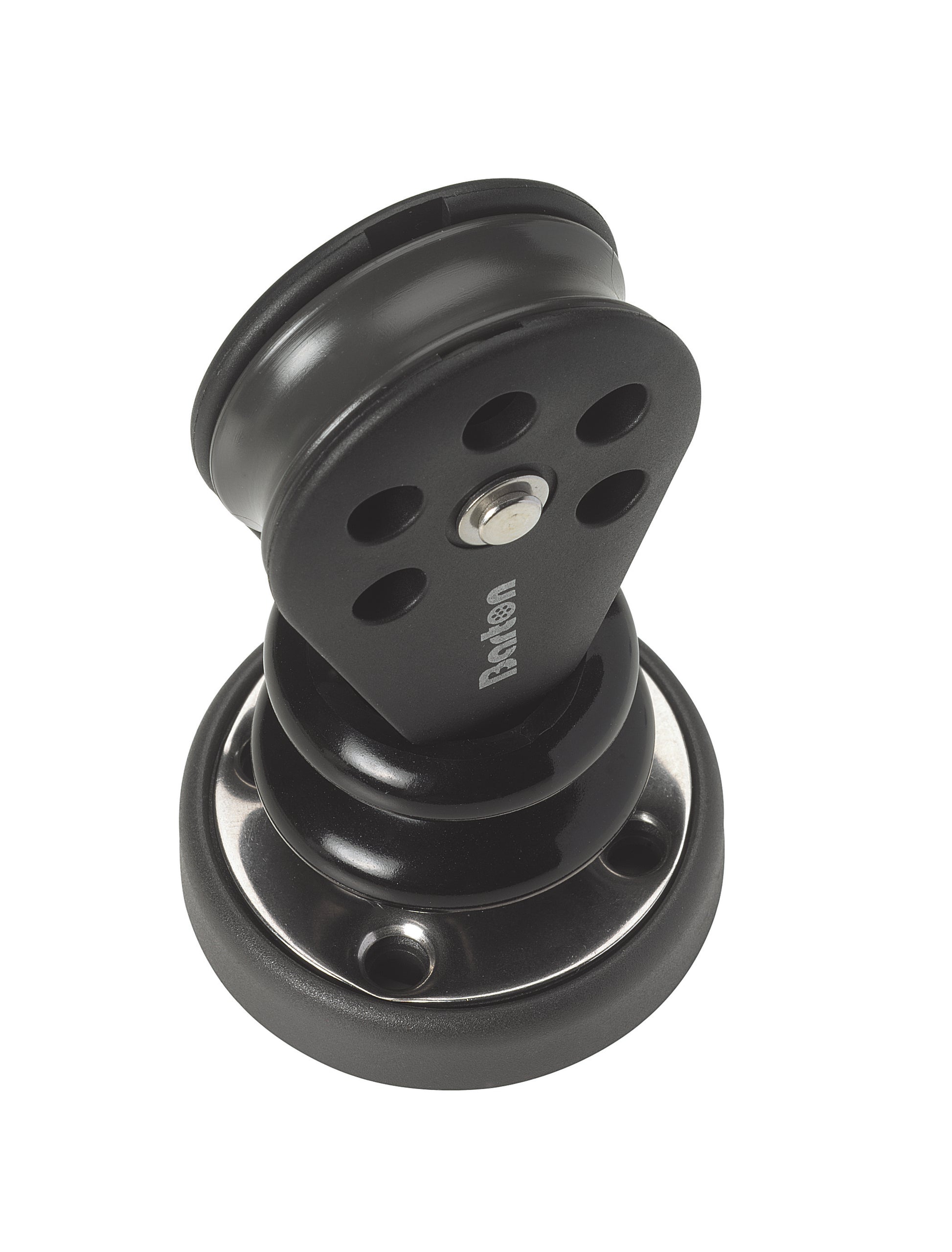

Barton Marine 45mm Single Stand Up Block (10mm Line)
Barton Marine 45mm Plain Bearing Single Stand Up Block (10mm Line)
The 45mm sheave plain bearing block range provides high performance and load values in a variety of assemblies. The range has an internal Stainless Steel frame and precision components with plain or ball bearing sheave options.
The lightweight design makes this range perfect for a multitude of uses on every yacht.
Technical Specifications:
- Sheave Size - 1.77" (45mm)
- Sheave - Plain
- Maximum Rope Diameter - 3/8" (10mm)
- Safe Working Load - 881 lb. (400 kg)
- Breaking Load - 1,763 lb. (800 kg)
- Length - 4.25" (108mm)
Barton Marine Part # N03170
*Sold as an Individual
×
