Barton Marine 45mm Double Block w/Fixed Eye & Becket (10mm Line)
Select a variant to see available stock.

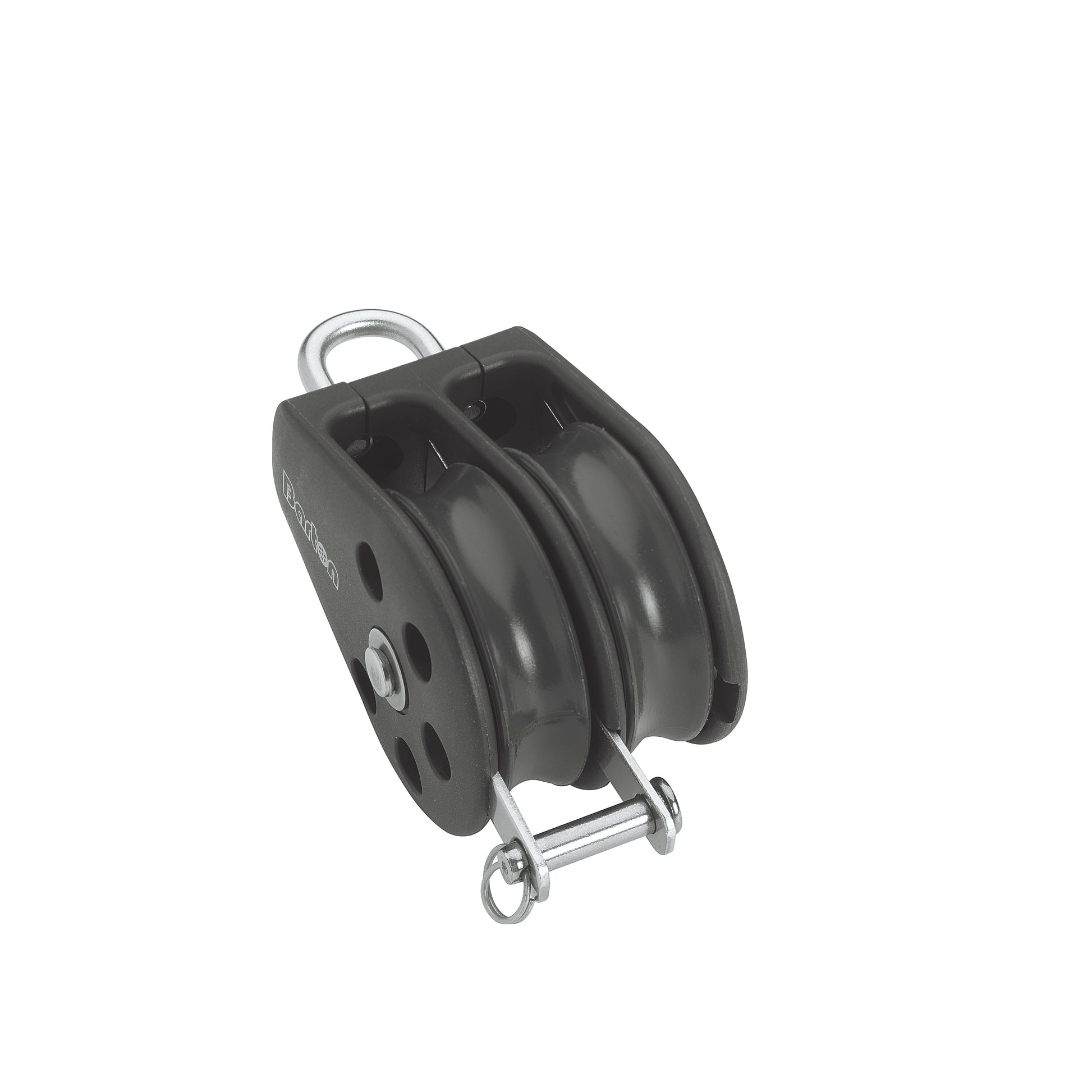

Barton Marine 45mm Double Block with Fixed Eye and Becket (10mm Line)
The 45mm sheave plain bearing block range provides high performance and load values in a variety of assemblies. The range has an internal Stainless Steel frame and precision components with plain or ball bearing sheave options.
The lightweight design makes this range perfect for a multitude of uses on every yacht.
Technical Specifications:
- Sheave Size - 1.77" (45mm)
- Sheave - Plain
- Maximum Rope Diameter - 3/8" (10mm)
- Safe Working Load - 881 lb. (400 kg)
- Breaking Load - 1,763 lb. (800 kg)
- Length - 3.62" (92mm)
Barton Marine Part # N03211
*Sold as an Individual
×
