Barton Marine 50mm Foot Block w/Cam (16mm Line)
Select a variant to see available stock.

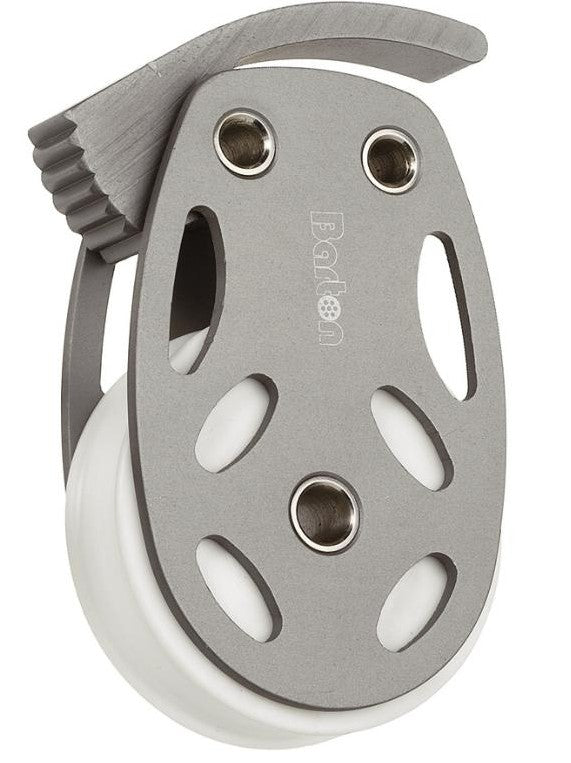

Barton Marine 50mm Foot Block with Cam (16mm Line)
Manufactured from marine grade Aluminum and Grey anodized for high UV stability and durability. Suitable for a multitude of uses, including locking control lines on headsail furling gear.
Features -
- Sheaves are precision turned from solid ‘Ertalyte’ bar.
- Running on a large diameter center bearing for easy running under high loads.
- Through-bolt mounting also means that these blocks can easily be stacked to achieve double block capabilities.
- Hollow Stainless Steel rivets allow for through-bolt fastening, giving added strength.
Technical Specifications -
- Sheave size - 1.97" (50mm)
- Sheave width - .59" (15mm)
- Maximum holding power - 551lbs. (250kg)
- Maximum line diameter - 1/2" (12mm)
- SWL - 1,102lbs. (500kg)
- Length - 3.31" (84mm)
Barton Part Number 82998
*Sold as an Individual
×
