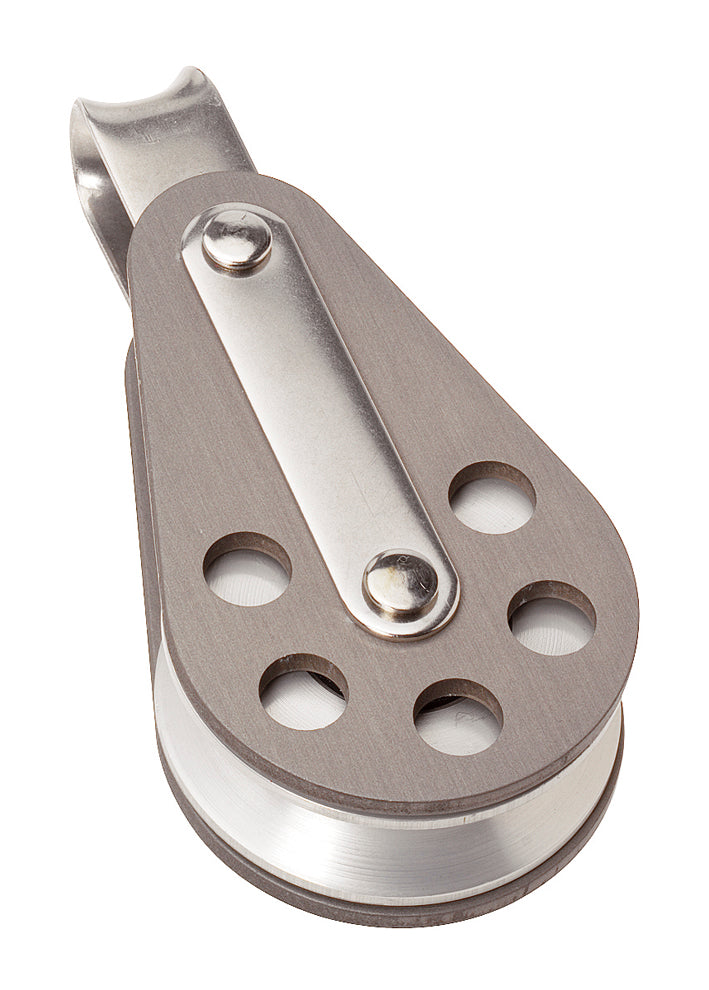

Barton Marine Aluminum Fixed Eye Wire Rope Block - 2.01" (51mm) Sheave

Barton Marine Aluminum Fixed Eye Wire Rope Block - 2.01" (51mm) Sheave

A range of high strength blocks designed for use with wire ropes or exceptionally rugged applications.

Cheeks are manufactured from marine grade Aluminum, Grey anodized for high UV-resistance and durability.  Sheaves are precision turned from solid Aluminum bar, Silver anodized and running on Nylon bearings to reduce friction under load.  Reinforcing plates, rivets, shackles and straps are all from 316 Stainless Steel.

Technical Specifications -

• Sheave Size - 2.01" (51mm)
• Sheave Type - Plain
• Maximum Rope Diameter - 1/2" (12mm)
• Maximum Wire Diameter - 1/8" (4mm)
• Breaking Load - 3,858lbs. (1,750kg)
• Safe Working Load - 1,929lbs. (875kg)

Barton Part Number 91600

*Sold as an Individual
