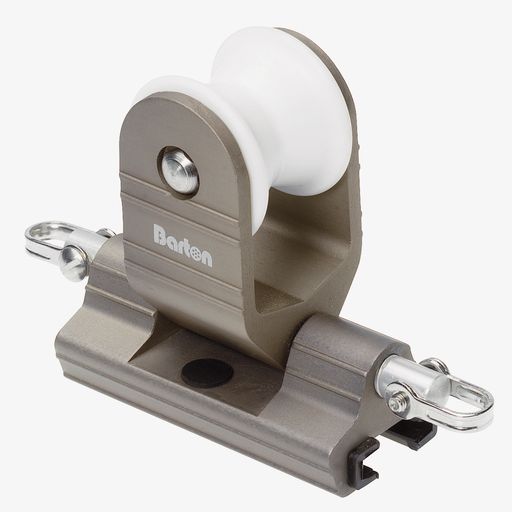

Barton Marine Towable Genoa Car f/.79" (20mm) T Track Section

Barton Marine Towable Genoa Car for .79" (20mm) T Track Section

With precision turned Ertalyte sheaves running on a large diameter canter boss to give friction free performance even under high load, allowing a control line to be led aft so that genoa car adjustments can be made from the cockpit.  Sheaves are designed with a wide width, which will accept two (2) sheets.

Molded Nylon inserts to ensure free, smooth running under load and to prevent damage to finish or potential corrosion.

Technical Specifications -

• Length -  4.33" (110mm)
• Width -  1.34" (34mm)
• Height - 2.56" (65mm)
• Sheave Diameter - 1.18" (30mm)
• Maximum Rope Diameter - 3/8" (10mm)
• Breaking Load -  2,557lbs. (1,160kg)
• Safe Working Load - 1,279bs. (580kg)

Barton Part Number 22200

*Sold as an Individual
