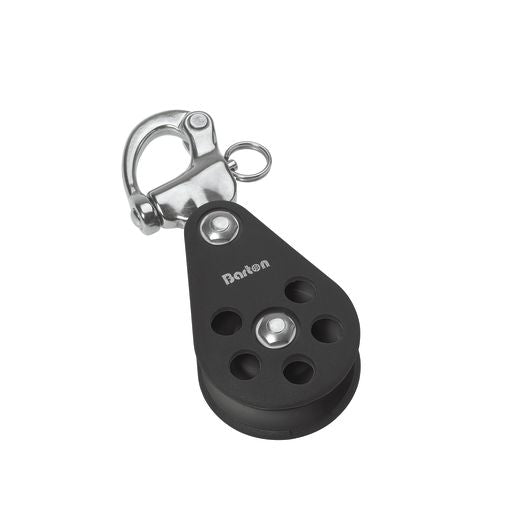

Barton Marine Size 6 - Single Ball Bearing Block w/Snap Shackle
Barton Marine Size 6 - Single Ball Bearing Block with Snap Shackle
The 2.52" (64mm) sheave Size 6 high load cruiser block range is of rugged construction, featuring high grade injection molded side plates, with all load carrying components from 316 grade Stainless Steel. Side plates are through-bolted and riveted for added strength and security.
This good looking and versatile range is designed for use on larger cruising and racing yachts. All are designed for ease of use with our ball bearing mainsheet traveler system.
- Sheave Size – 2.52" (64mm)
- Bearing Type - Ball Bearing
- Maximum Rope Diameter – 1/2" (12mm)
- Safe Working Load – 2,205lbs. (1,000kg)
- Breaking Load – 4,409lbs. (2,000 kg)
- Length - 6.69" (170mm)
Barton Part Number N16140
*Sold as an Individual
