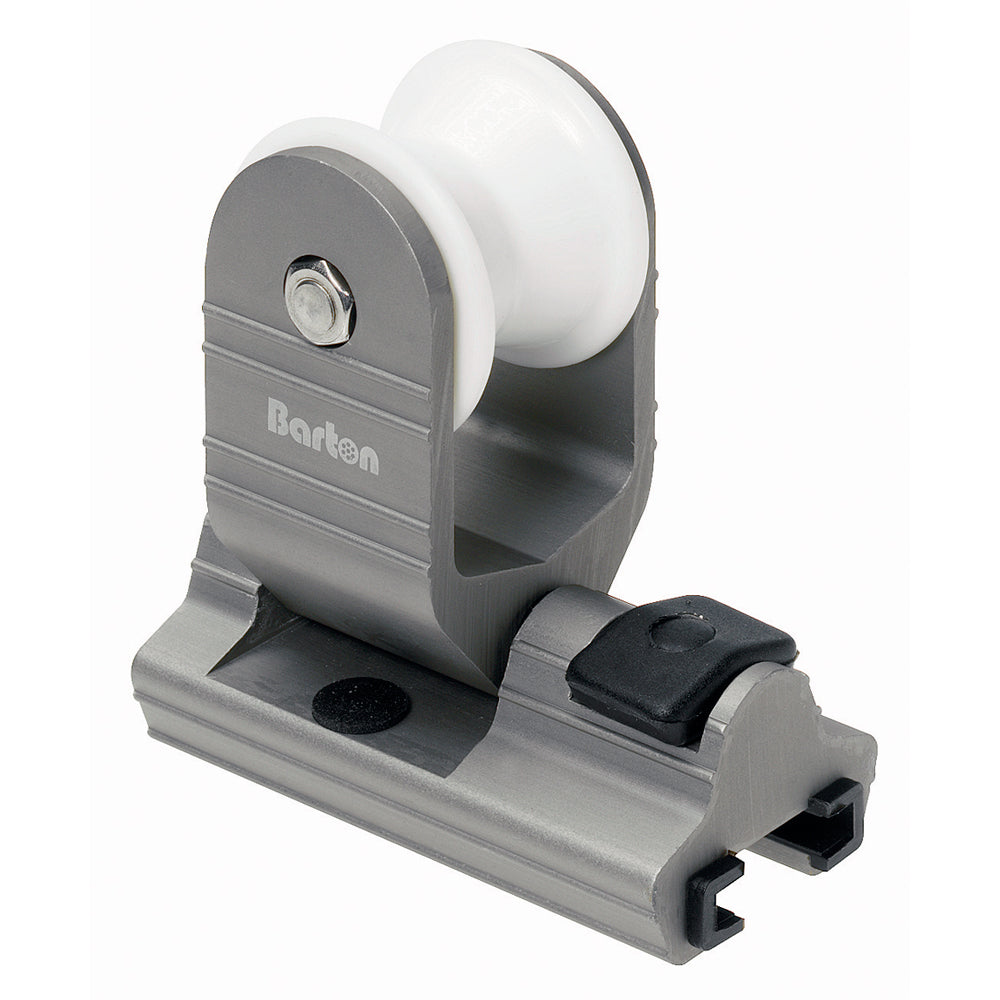

Barton Marine Genoa Car w/Plunger Stop f/.79" (20mm) T Track
Barton Marine Genoa Car with Plunger Stop for .79" (20mm) T Track
Features precision turned Ertalyte sheaves running on a large diameter center bearing, for friction-free performance under load. Sheaves are designed with extra width to accept two sheets. The sheave axle is through-bolted and riveted for extra strength
Technical Specifications -- Length - 2.36" (60mm)
- Width - 1.34" (34mm)
- Height - 2.56" (65mm)
- Sheave Diameter - 1.18" (30mm)
- Maximum Rope Size - 3/8" (10mm)
- Break Load - 2,557lbs. (1,160kg)
- Safe Working Load - 1,278lbs. (580kg)
Barton Part Number 22100
*Sold as an Individual
×
