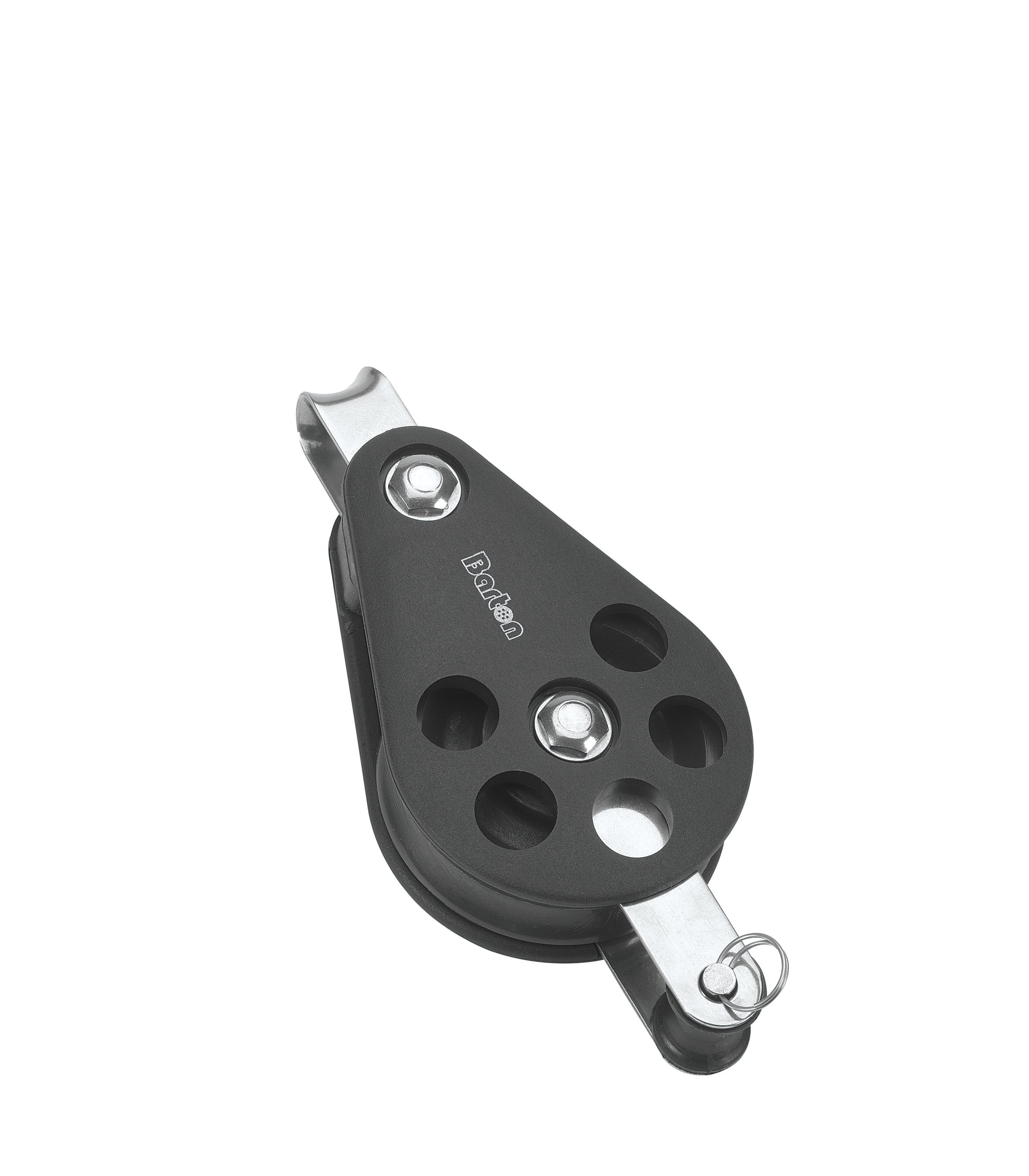

Barton Marine Size 7 - Single Block w/Fixed Eye & Becket
Barton Marine Size 7 - Single Block with Fixed Eye and Becket
The 2.76" (70mm) sheave Size 7 high load cruising block range is engineered for superior strength and performance and offers both plain and ball bearing sheave assemblies. The range features high grade glass fibber nylon reinforced molded side plates with internal 316 Stainless Steel frame that is through-bolted and riveted for added strength and durability.
This well designed and versatile range is engineered for use on larger cruising and racing yachts.
- Sheave Size - 2.76" (70mm)
- Sheave - Plain
- Maximum Rope Diameter - 9/16" (14mm)
- Safe Working Load - 2,756 lb. (1,250 kg)
- Breaking Load - 5,512 lb. (2,500 kg)
- Length - 6.54" (166mm)
Barton Part Number N07111
*Sold as an Individual
