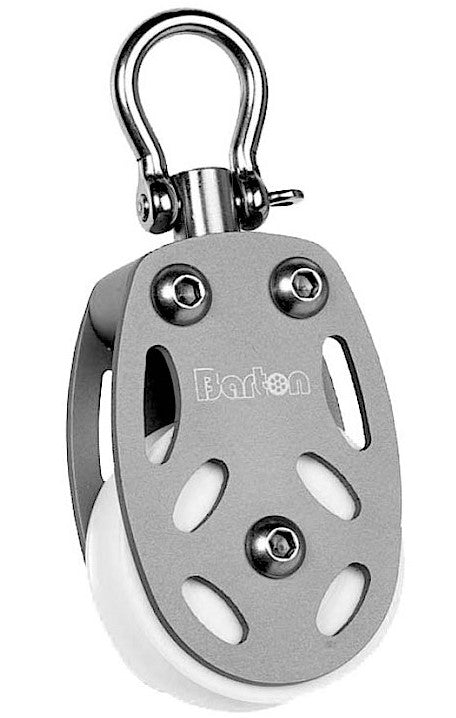

Barton Marine High Load Block - 2.56" (65mm) Sheave
Barton Marine High Load Block - 2.56" (65mm) Sheave
Manufactured from marine grade Aluminum and Grey anodized for high UV stability and durability.
Features -
- Sheaves are precision turned from solid ‘Ertalyte’ bar.
- Running on a large diameter center bearing for easy running under high loads.
- Fitted with a Stainless Steel bow shackle to allow for snag-free operation.
- Bolt-together construction allows for easy dismantling should servicing become necessary.
Technical Specifications -
- Sheave size - 2.56" (65mm)
- Sheave width - .71" (18mm)
- Maximum rope diameter - 5/8" (16mm)
- SWL - 1,764lbs. (800kg)
- Length - 5.59" (142mm)
Barton Part Number 82200
*Sold as an Individual
×
